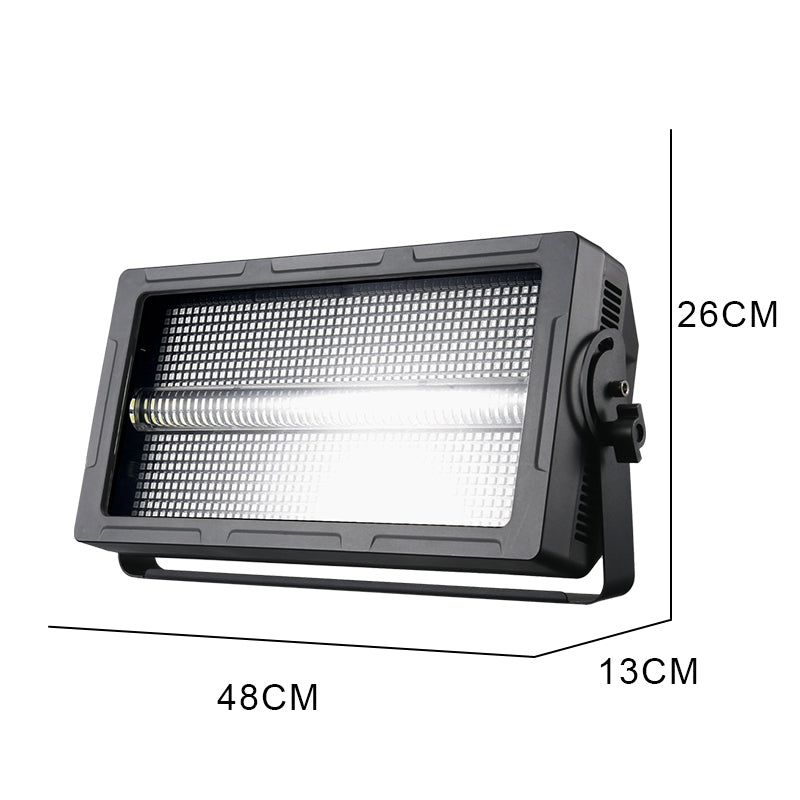

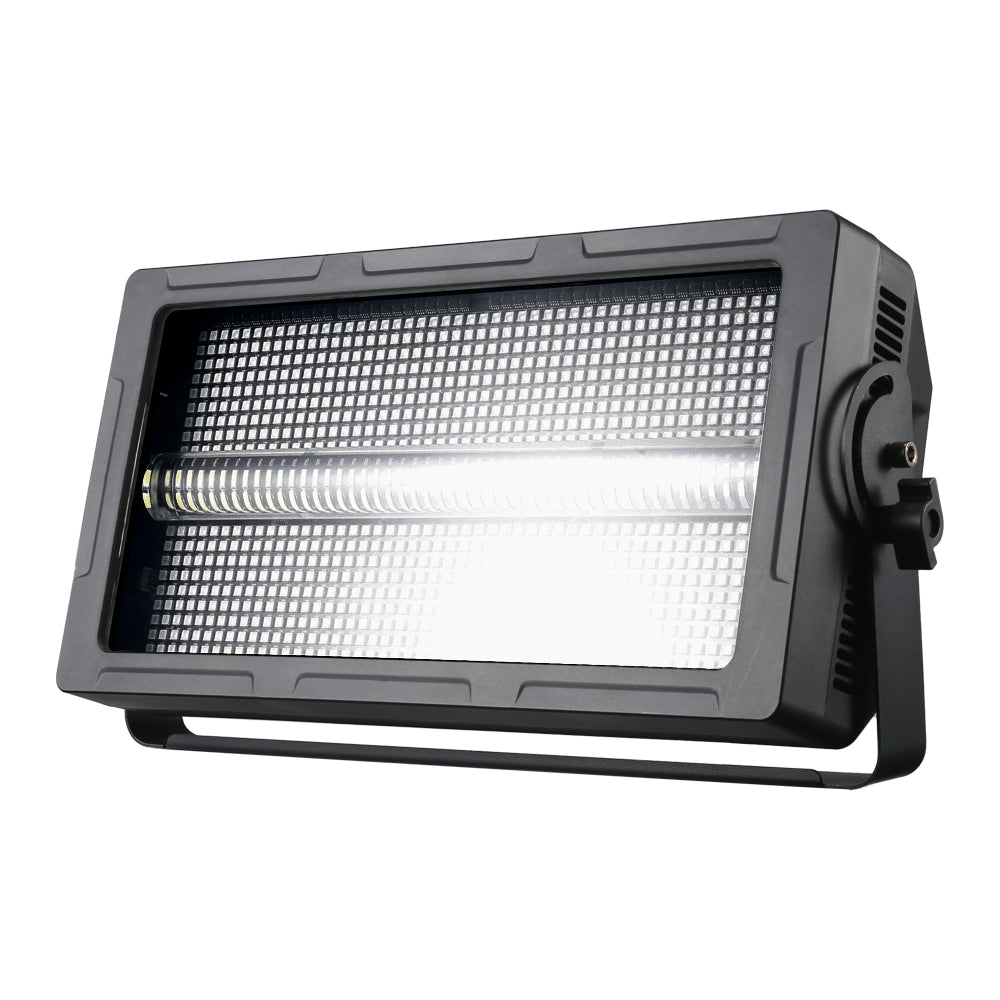

شريط إضاءة ستروب مُقسّم بالألوان الكاملة 250 واط | 960 مصباح LED، 16 مقطعًا، DMX512 – للمسرح والفعاليات
$165.00
سعر البيع
$165.00
السعر الاعتيادي
تجاوز إلى معلومات المنتج
شريط إضاءة ستروب مُقسّم بالألوان الكاملة 250 واط | 960 مصباح LED، 16 مقطعًا، DMX512 – للمسرح والفعاليات
$165.00
سعر البيع
$165.00
السعر الاعتيادي

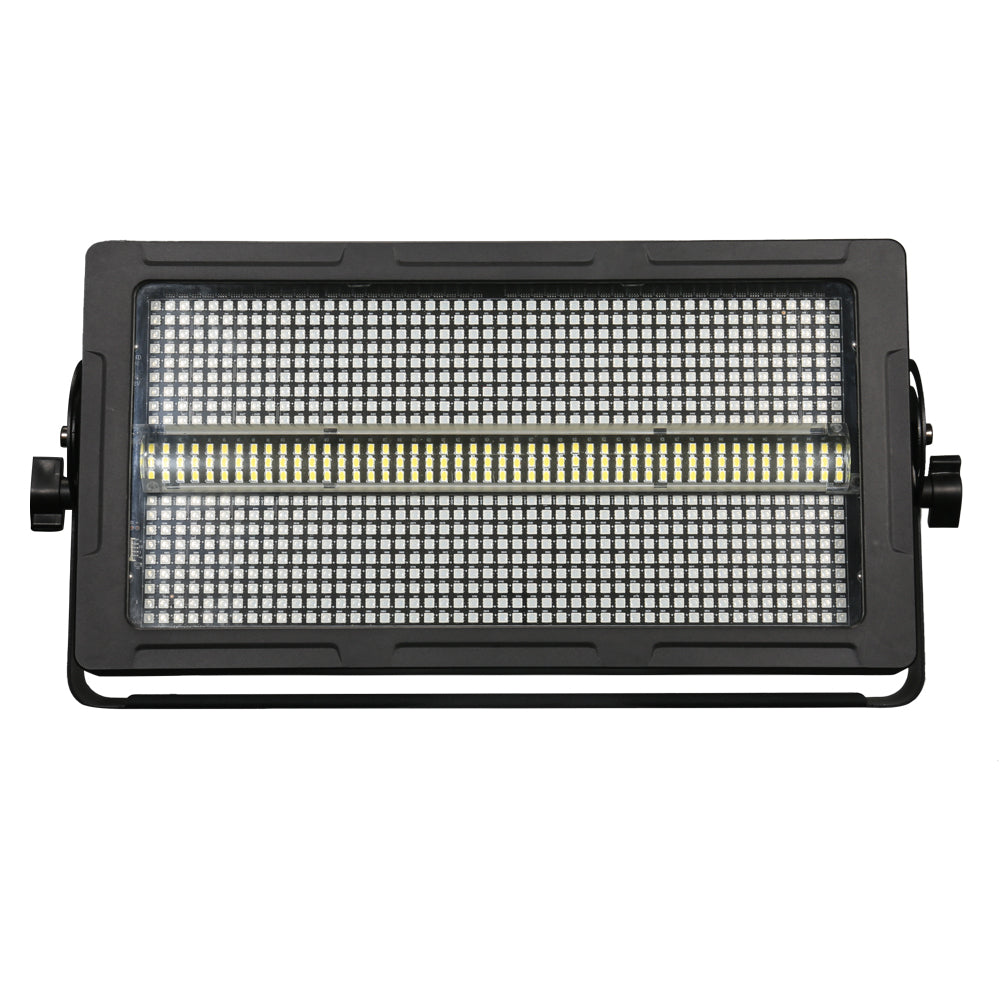

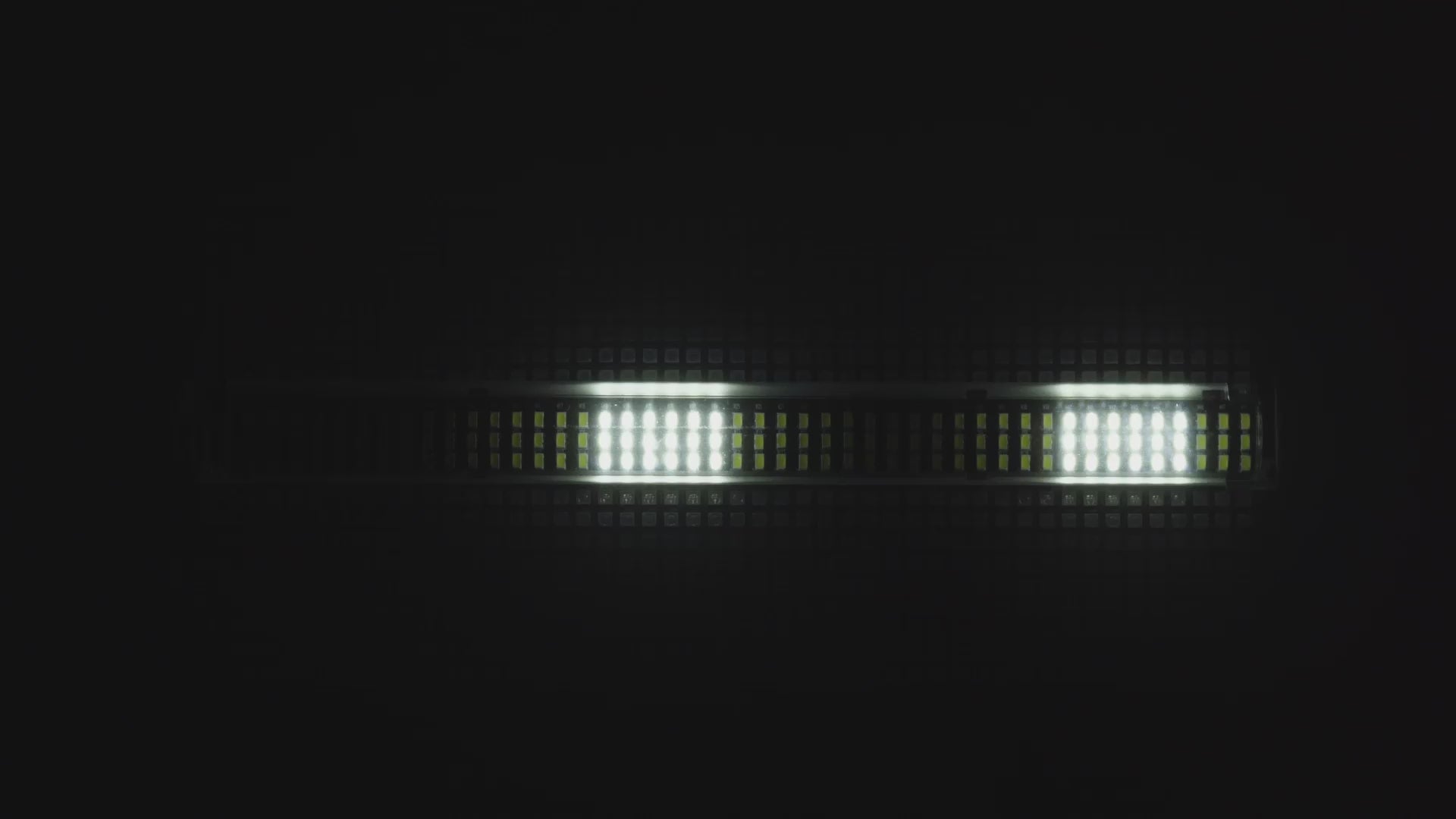

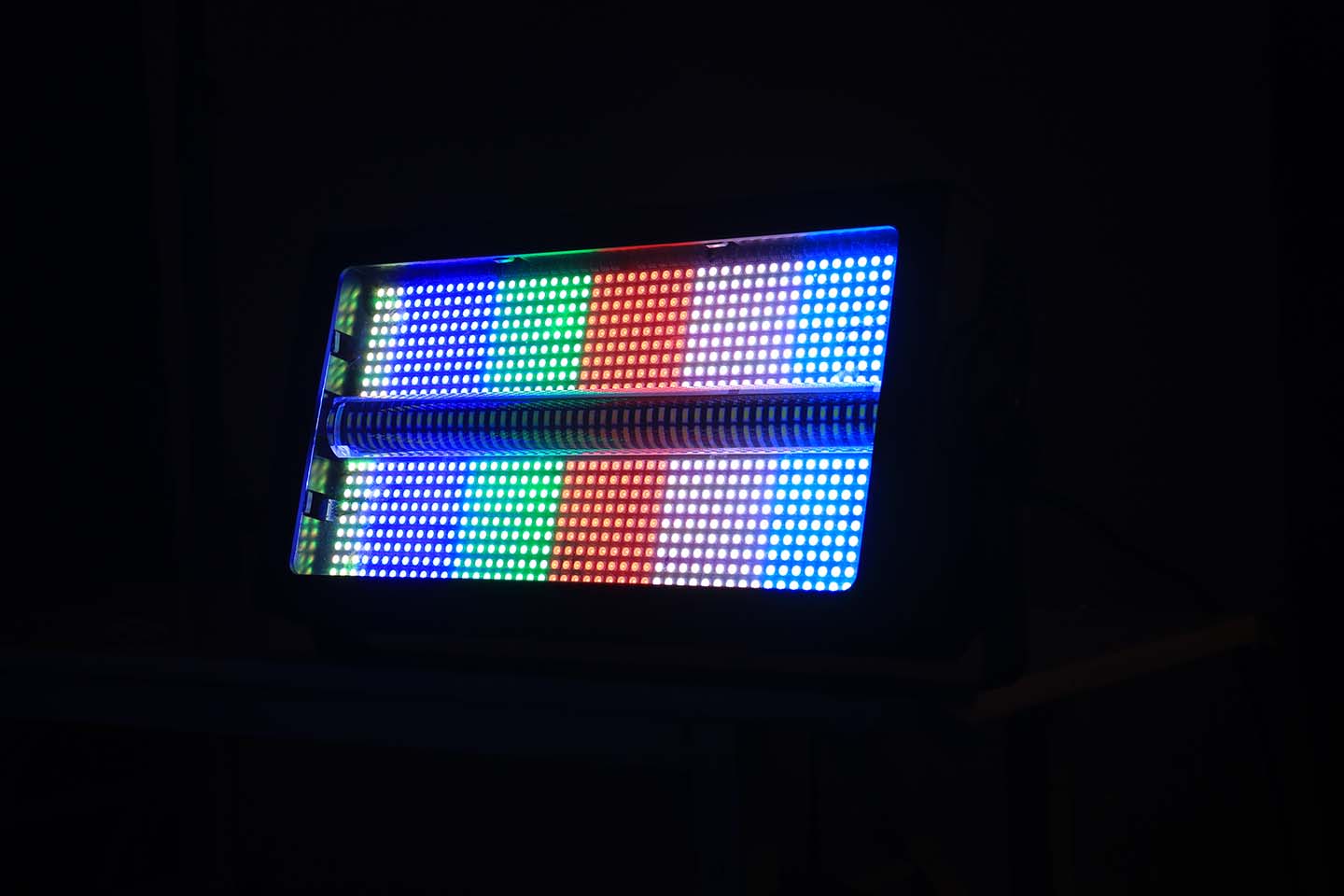

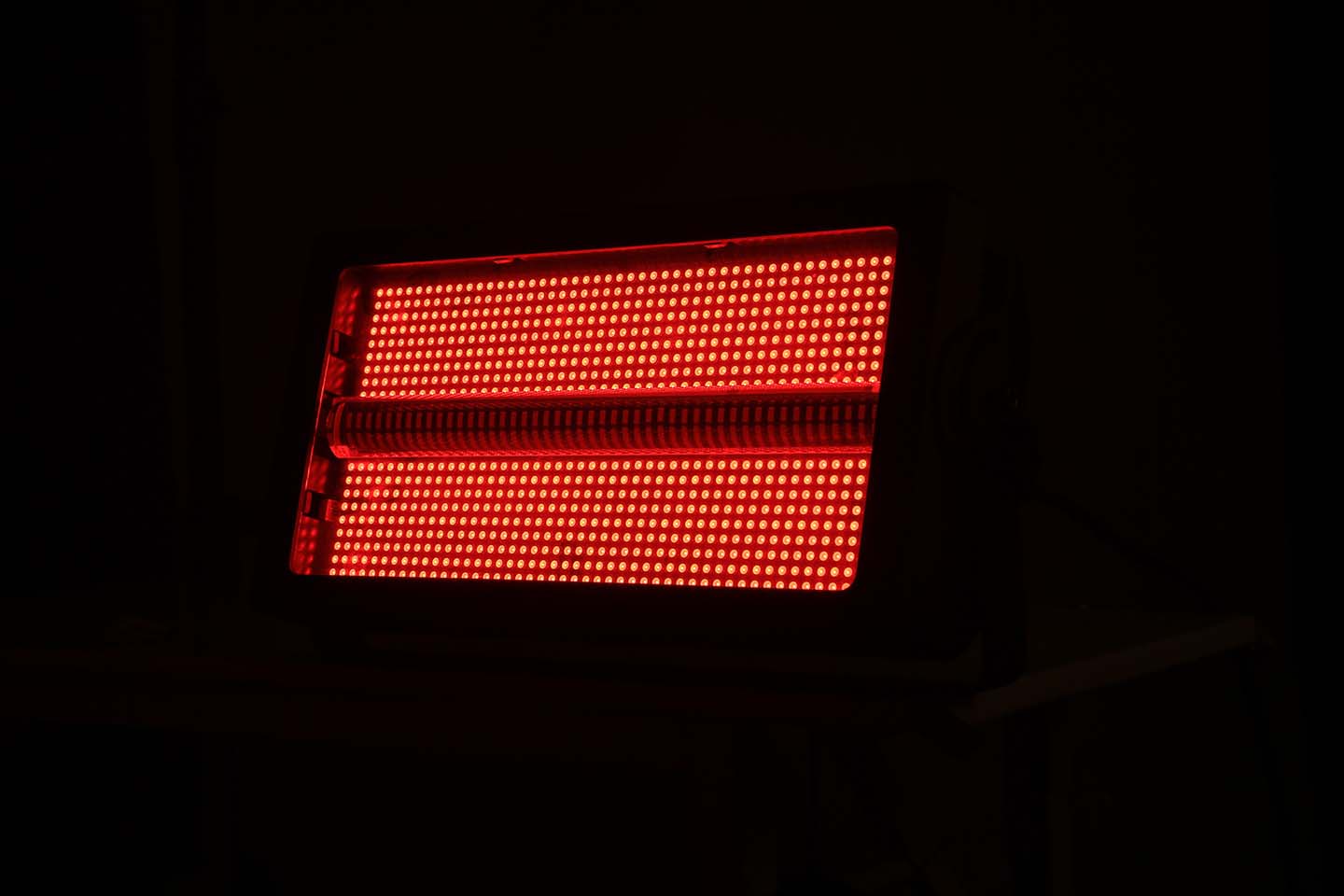

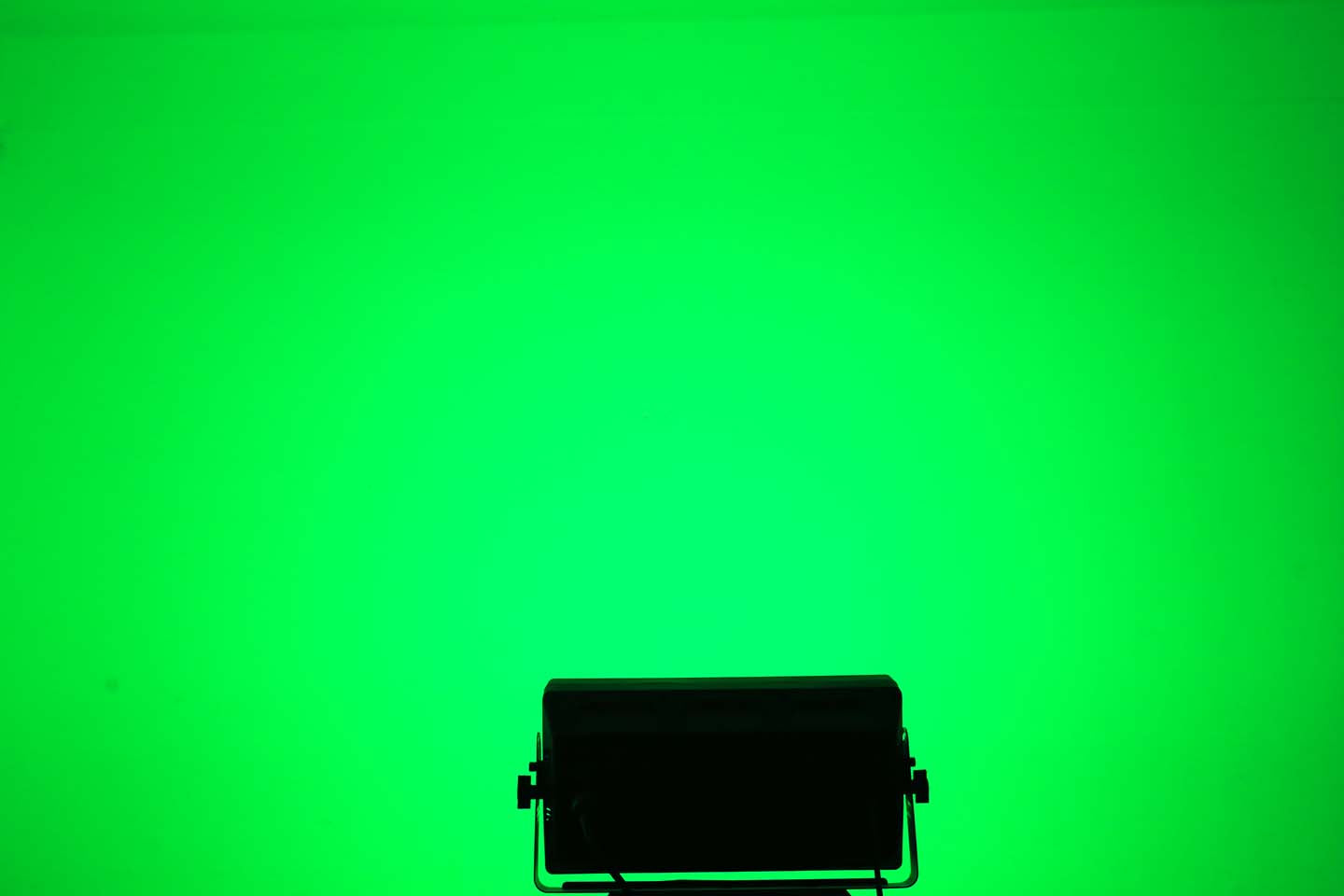

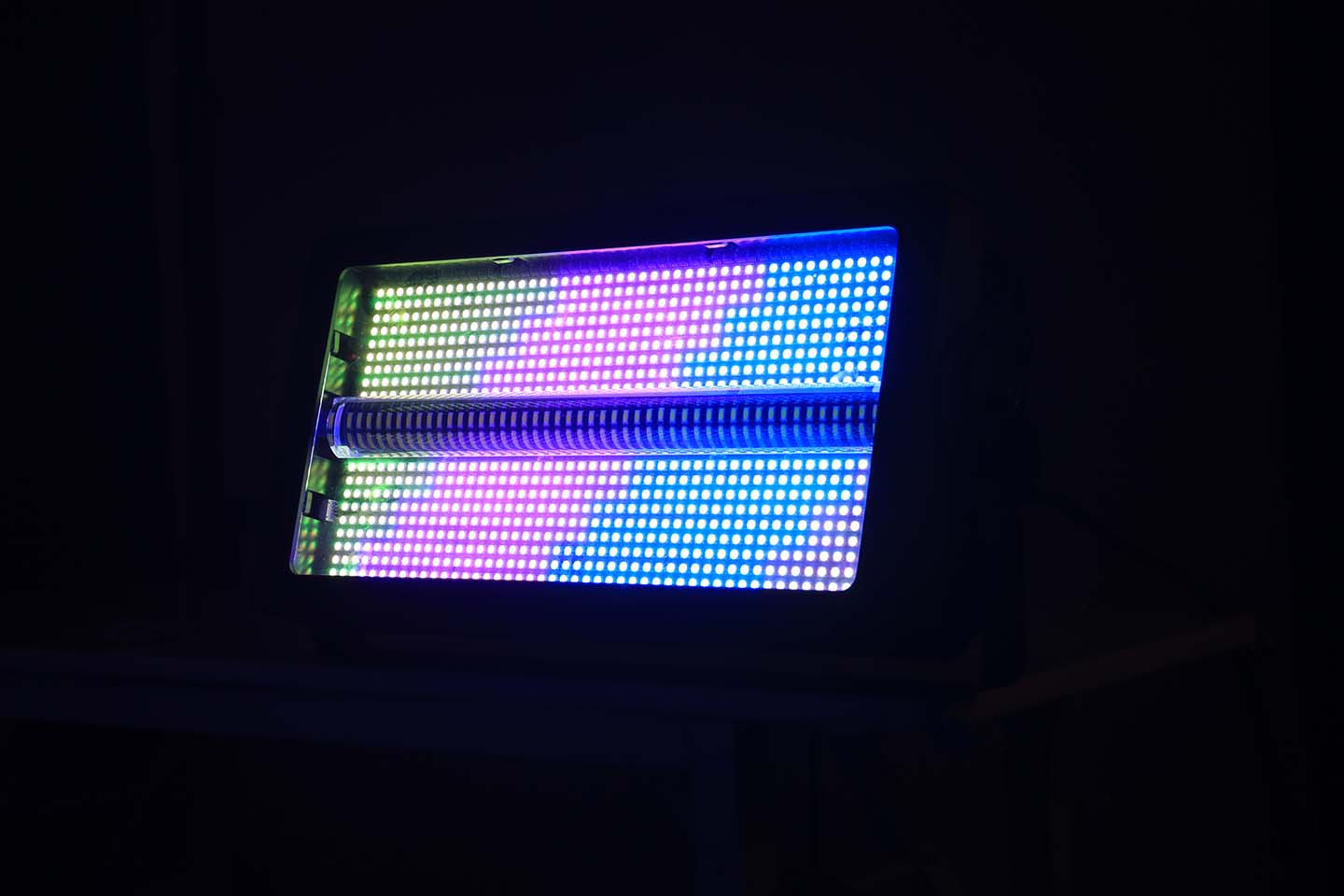

شريط إضاءة ستروب مُقسَّم بألوان كاملة بقوة 250 واط — تأثيرات ديناميكية لأي مسرح
حوّل أي مكان باستخدام شريط الستروب الاحترافي هذا ذي الألوان الكاملة بقوة 250 واط. يتميز بـ 960 مصباح LED SMD عالي الكثافة موزعة على 16 جزءًا يتم التحكم فيها بشكل مستقل، مما يوفر تسلسلات مطاردة مذهلة، وتأثيرات تغيير الألوان، وانفجارات ستروب قوية — كل ذلك مع تحكم دقيق DMX512.
الميزات الرئيسية
- الطاقة: 250 واط | تيار متردد 110-220 فولت، 50/60 هرتز
- مصدر الضوء: 960 × 0.6 واط SMD LED — عالي الكثافة، خرج متساوٍ
- الأجزاء: 16 جزءًا يتم التحكم فيها بشكل مستقل لتأثيرات المطاردة
- التعتيم: 32 بت 0-100% تعتيم خطي سلس
- سرعة الستروب: 1-30 هرتز قابل للتعديل
- أوضاع التحكم: DMX512 (5 قنوات) | رئيسي/فرعي | نشط بالصوت | تشغيل تلقائي | RDM

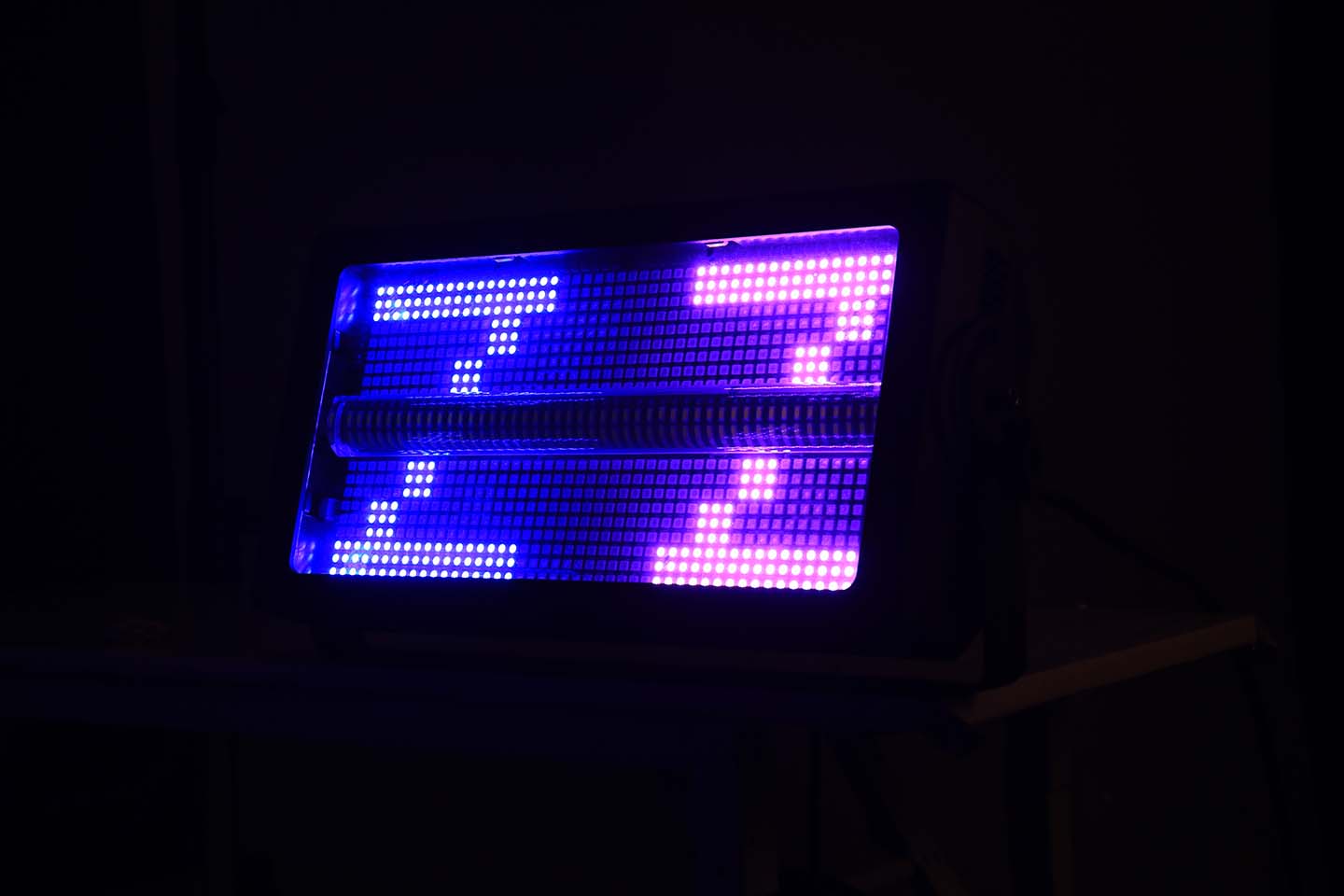

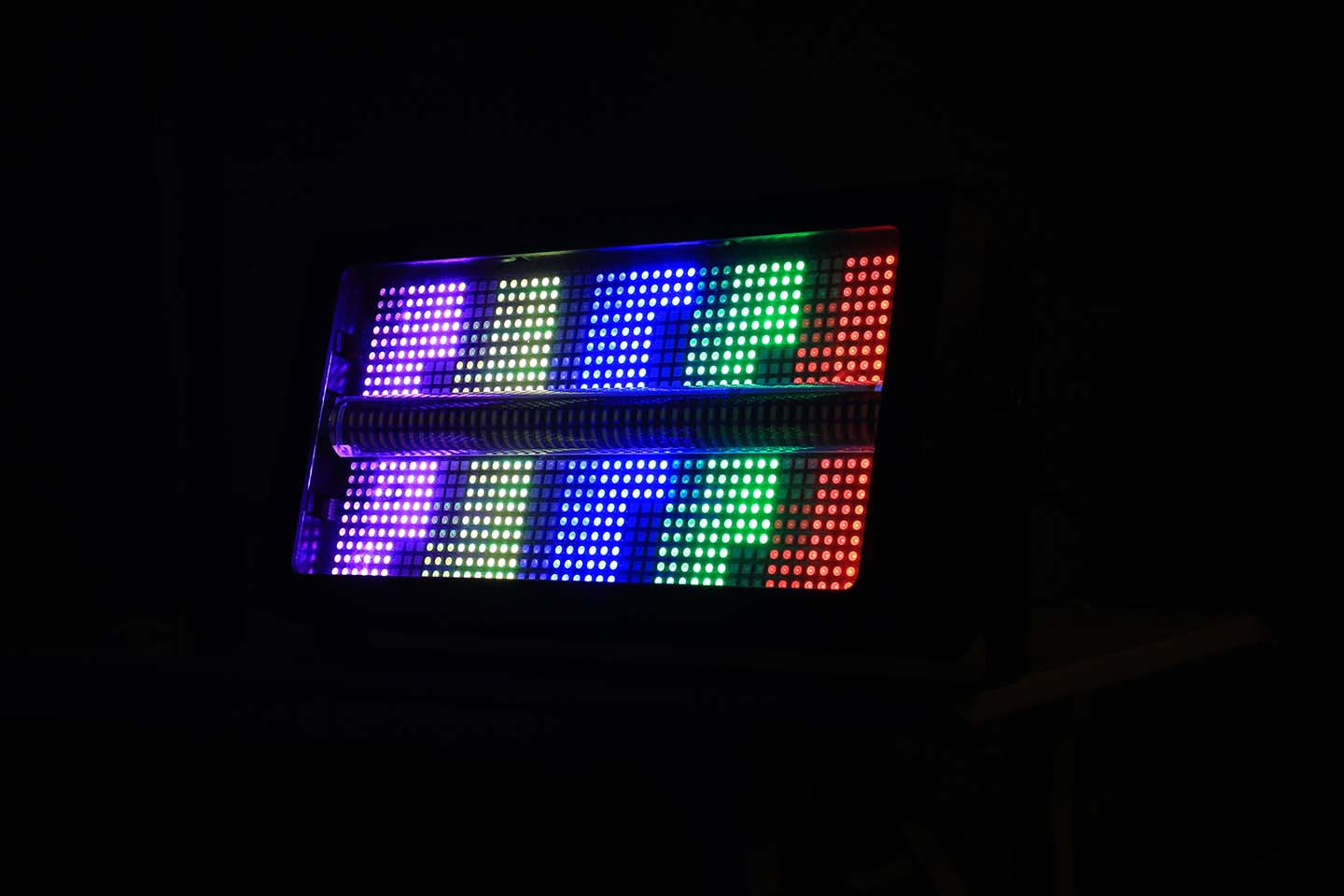

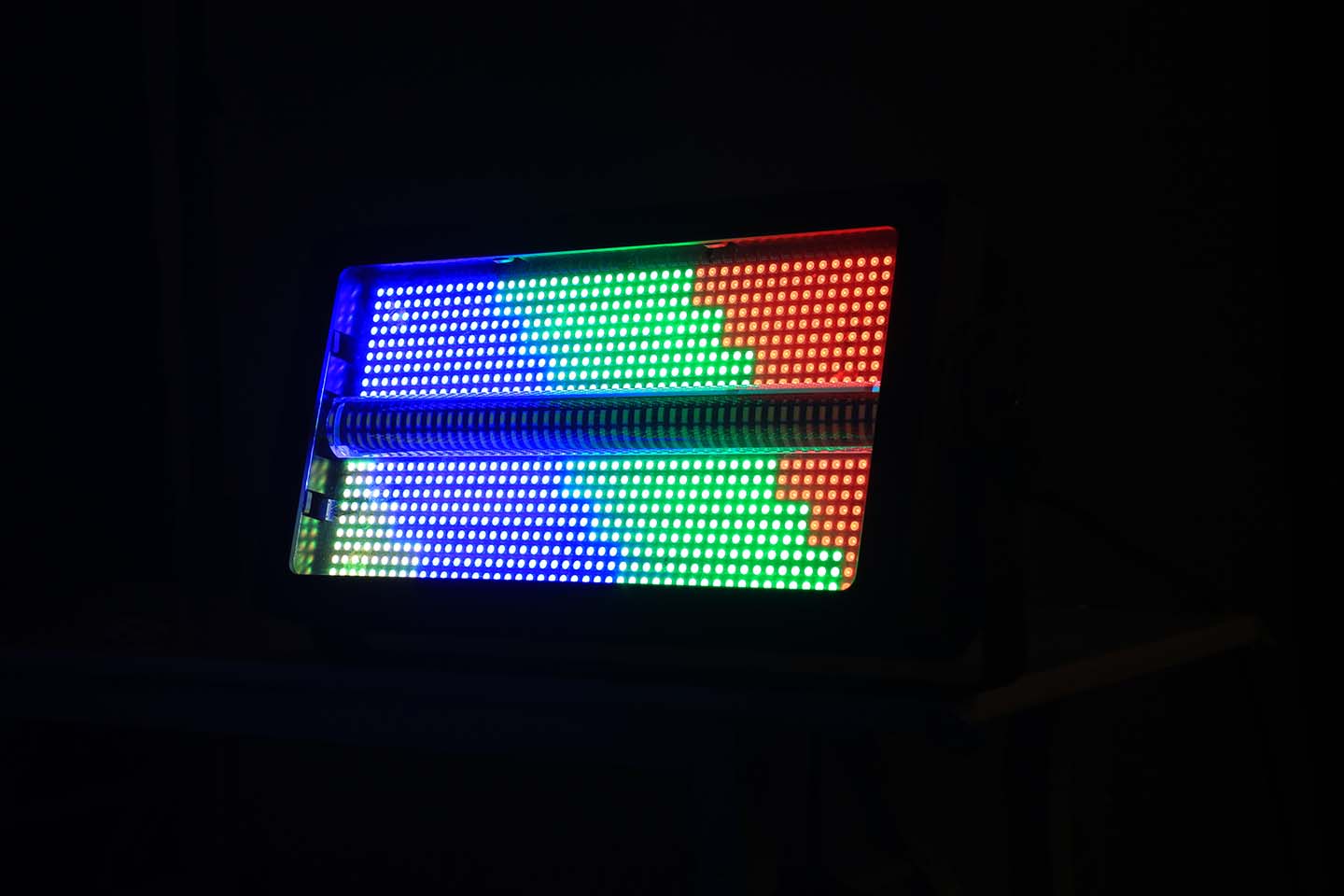

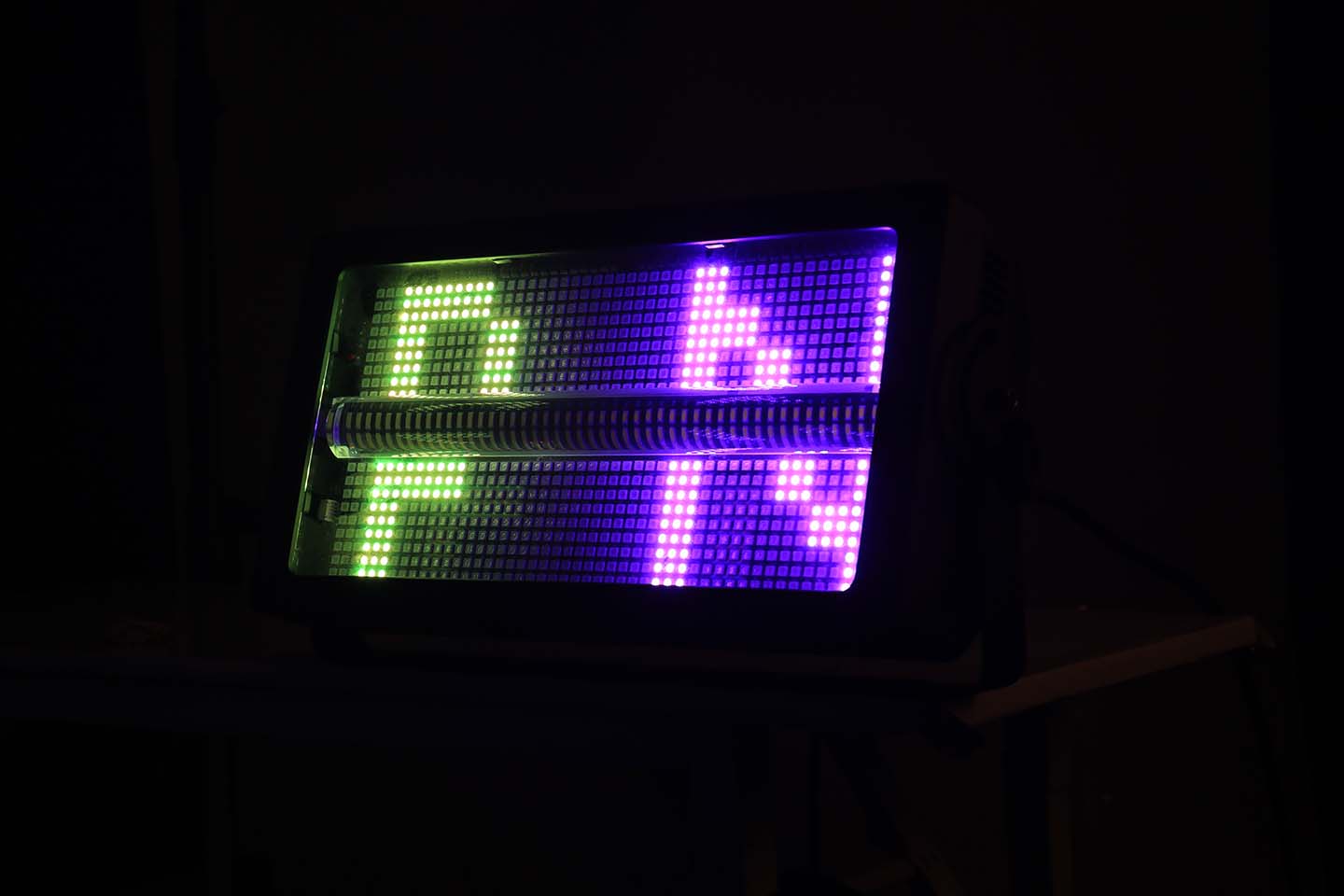

- التأثيرات: مطاردة 8 أجزاء، تغيير الألوان، ستروب

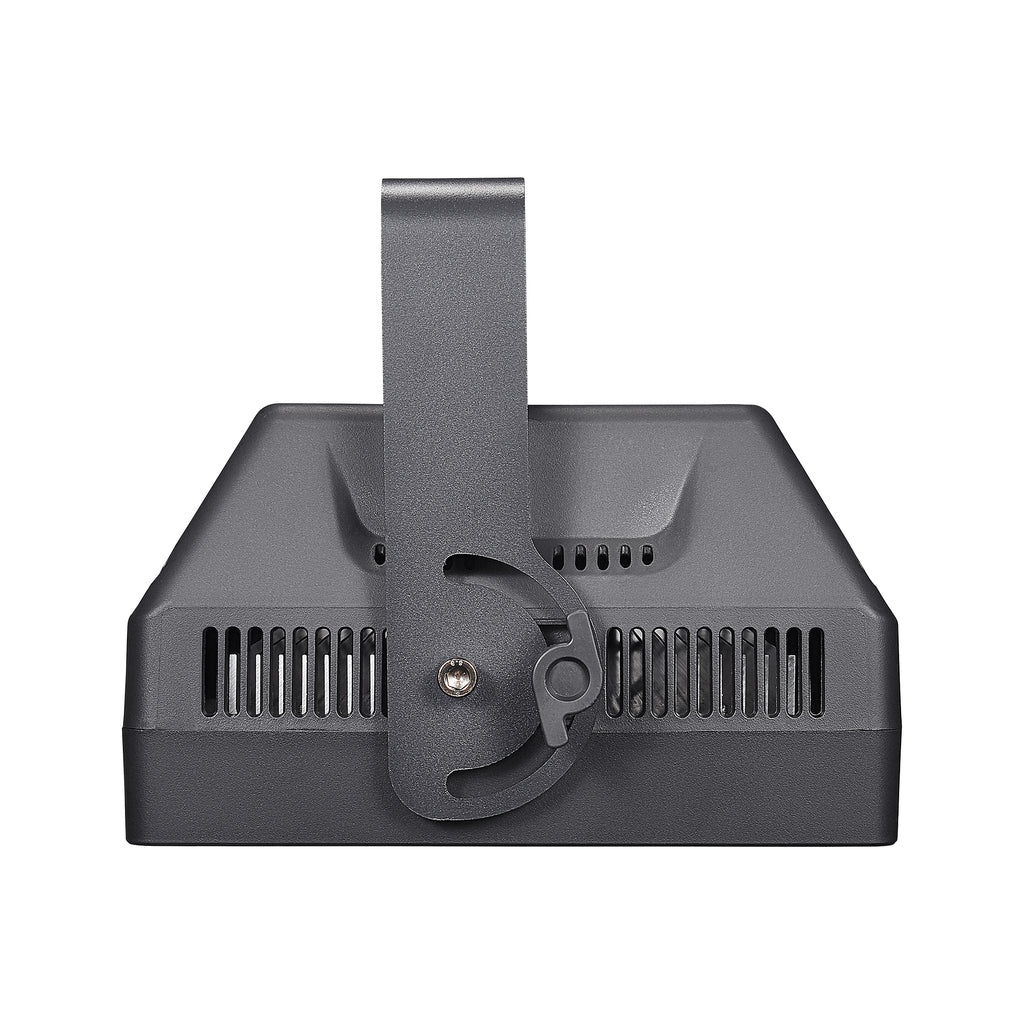

- التبريد: نظام تبريد بمروحة
- الغلاف: بلاستيك أسود، تصنيف IP20
مثالي لـ
حفلات الزفاف، الحانات، المراقص، قاعات الاحتفالات، KTV، الحفلات المنزلية، والإنتاجات المسرحية الاحترافية.
قد يعجبك أيضاً
Product Details
8+8 Flash Lights
Features: horse racing + high explosive flash
User's Manual
Thank you for using our products. This manual contains important information about product use, installation and maintenance methods. Please read it carefully, install and operate as required, and keep the manual properly for emergency. When this product is delivered, the performance and packaging are complete. All users shall strictly follow the warnings and operating instructions stated in this specification. Any damage caused by misuse is not within the Company's warranty. This manual is subject to technical changes without prior notice.
Product Attributes
| Parameter | Value |
|---|---|
| Operating Voltage | AC100～240V，50～60Hz |
| Power | 250W |
| LED specifications | 0.2W 5050 RGB triplex lamp bead + 1W 5054 white lamp beads |
| A number | 640+80PCS |
| Light source life | ≥50000h |
| Features | horse racing + high explosive flash |
| Aiming | Linear dimming, 0 brightness to 100% adjustable |
| Channel | CH4、CH16、CH32、CH35 |
| Display | Digital display |
| Control model | ☑ DMX control ☑ Primary / slave synchronization mode ☑ Self-control ☑ Sound control |
| Light and lamp color | black |
| IP grade | IP20, for indoor use |

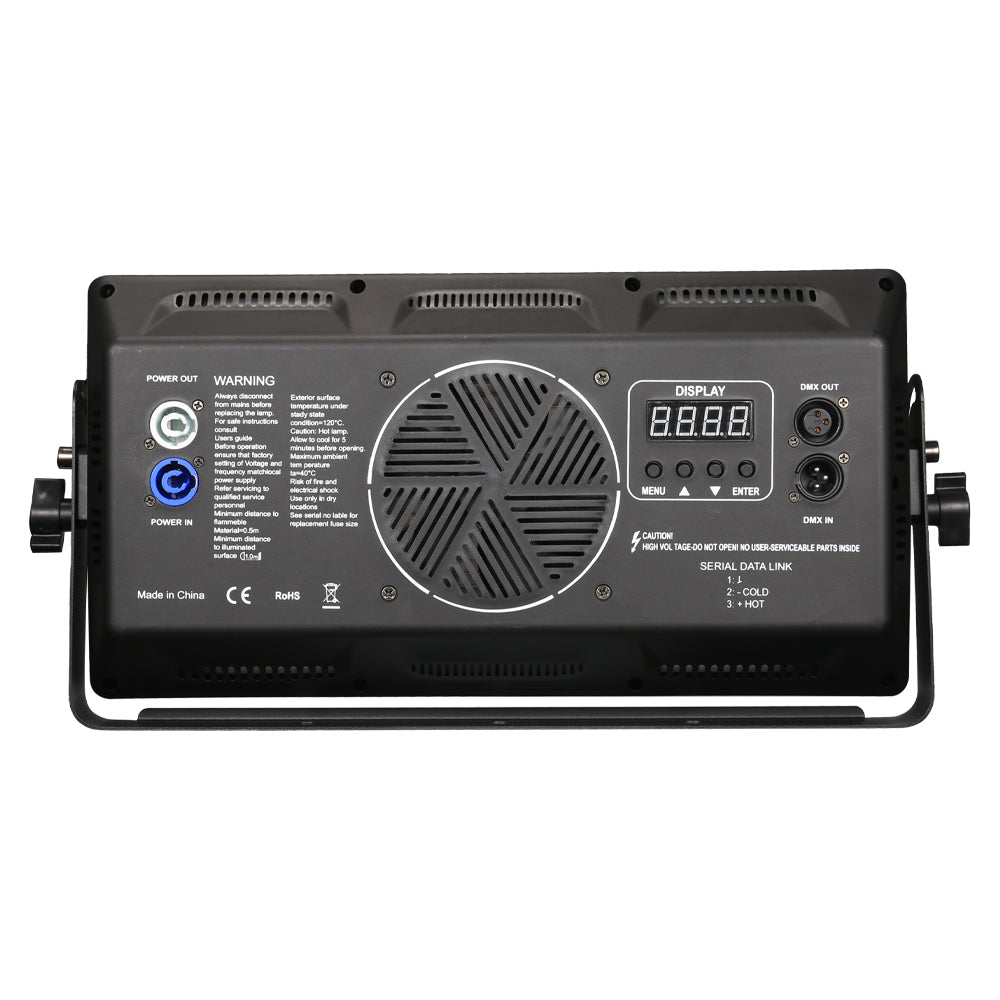

Display Panel
| Project | No. | Silk-Screen | Function |
|---|---|---|---|
| Button | 1 | MENU | Enter / view the menu function |
| 2 | ▲ | View the previous menu | |
| 3 | ▼ | View the next menu | |
| 4 | ENTER | Determination key |
Display Function
| Menu | Options and Settings | Explain |
|---|---|---|
| DMX Address | d001 ～ d512 | DMX address code select 1-512 |
| Channel Mode | CH4 | 4-Channel mode |
| CH16 | 16-Channel mode | |
| CH32 | 32-Channel mode | |
| CH35 | 35-Channel mode | |
| Red Dimming | 000 ～ 255 | Red dimming, 0-100% brightness |
| Green Dimming | 000 ～ 255 | Green dimming, 0-100% brightness |
| Blue Dimming | 000 ～ 255 | Blue dimming, 0-100% brightness |
| White Dimming | 000 ～ 255 | White dimming, 0-100% brightness |
| Strobe | 000-004 Close the flash 005-255 Strobe (larger value = faster speed) | Strobe control |
| RGB Self-Walking | 0-62 effect choices | Press ENTER to enter effect selection. The larger the value, the faster the speed. |
| W Self-Walk Effect | 0-50 options | White self-walk effect |
| RGBW Self-Walking | 1-62 effect choices | RGBW self-walking effect |
| Sound Control Mode | Sound control ON | Sound control mode enabled |
| Sound Sensitivity | 000 ～ 255 | Higher value = higher sensitivity |
DMX Channel Modes
[DMX 1] 4-Channel Mode (Mode 1)
| CH | Value | Function |
|---|---|---|
| CH1 | 000-255 | R Dimming, 0-100% |
| CH2 | 000-255 | G Dimming, 0-100% |
| CH3 | 000-255 | B Dimming, 0-100% |
| CH4 | 000-255 | W Dimming, 0-100% |
[DMX 2] 16-Channel Mode (Mode 2)
| Channel | Value | Function |
|---|---|---|
| CH1 | 000-255 | Total dimming, dark to bright |
| CH2 | 000-004 | Close flash |
| 005-255 | RGB strobe, fast to slow | |
| CH3 | 000-255 | R red dimming, dark to bright |
| CH4 | 000-255 | G green dimming, dark to bright |
| CH5 | 000-255 | B blue dimming, dark to bright |
| CH6 | 000-255 | RGB macro, monochrome effect color controlled by RGB dimming |
| CH7 | 000-127 | RGB macro normal, speed slow to fast |
| 128-255 | RGB macro inversion, speed slow to fast | |
| CH8 | 000-004 | Turn off W flash |
| 005-255 | W strobe, fast to slow | |
| CH9 | 000-255 | W white dimming, dark to bright |
| CH10 | 000-255 | W macro, brightness controlled by W dimming |
| CH11 | 000-127 | W macro normal, speed slow to fast |
| 128-255 | W macro inversion, speed slow to fast | |
| CH12 | 000-004 | Turn off RGBW strobe |
| 005-255 | RGBW strobe, slow to fast | |
| CH13 | 000-251 | RGBW macro |
| 252-255 | RGBW sound mode | |
| CH14 | 000-127 | RGBW macro normal, speed slow to fast (or sound sensitivity low to high) |
| 128-255 | RGBW macro inversion, speed slow to fast (or sound sensitivity) | |
| CH15 | 000-255 | RGB background color |
| CH16 | 000-255 | RGB background color dimming |
[DMX 3] 32-Channel Mode (Mode 3)
| Channel | Value | Function |
|---|---|---|
| CH1 | 000-255 | R1 red dimming, dark to bright |
| CH2 | 000-255 | G1 green dimming, dark to bright |
| CH3 | 000-255 | B1 blue dimming, dark to bright |
| ... | ... | ... |
| CH22 | 000-255 | R8 red dimming, dark to bright |
| CH23 | 000-255 | G8 green dimming, dark to bright |
| CH24 | 000-255 | B8 blue dimming, dark to bright |
| CH25 | 000-255 | W1 white dimming, dark to bright |
| CH26 | 000-255 | W2 white dimming, dark to bright |
| ... | ... | ... |
| CH31 | 000-255 | W7 white dimming, dark to bright |
| CH32 | 000-255 | W8 white dimming, dark to bright |
[DMX 4] 35-Channel Mode (Mode 4)
| Channel | Value | Function |
|---|---|---|
| CH1 | 000-255 | Total dimming, dark to bright |
| CH2 | 000-004 | Close flash |
| 005-255 | RGB strobe, fast to slow | |
| CH3 | 000-004 | Turn off W flash |
| 005-255 | W strobe, fast to slow | |
| CH4 | 000-255 | R1 red dimming, dark to bright |
| CH5 | 000-255 | G1 green dimming, dark to bright |
| CH6 | 000-255 | B1 blue dimming, dark to bright |
| ... | ... | ... |
| CH25 | 000-255 | R8 red dimming, dark to bright |
| CH26 | 000-255 | G8 green dimming, dark to bright |
| CH27 | 000-255 | B8 blue dimming, dark to bright |
| CH28 | 000-255 | W1 white dimming, dark to bright |
| CH29 | 000-255 | W2 white dimming, dark to bright |
| ... | ... | ... |
| CH34 | 000-255 | W7 white dimming, dark to bright |
| CH35 | 000-255 | W8 white dimming, dark to bright |
