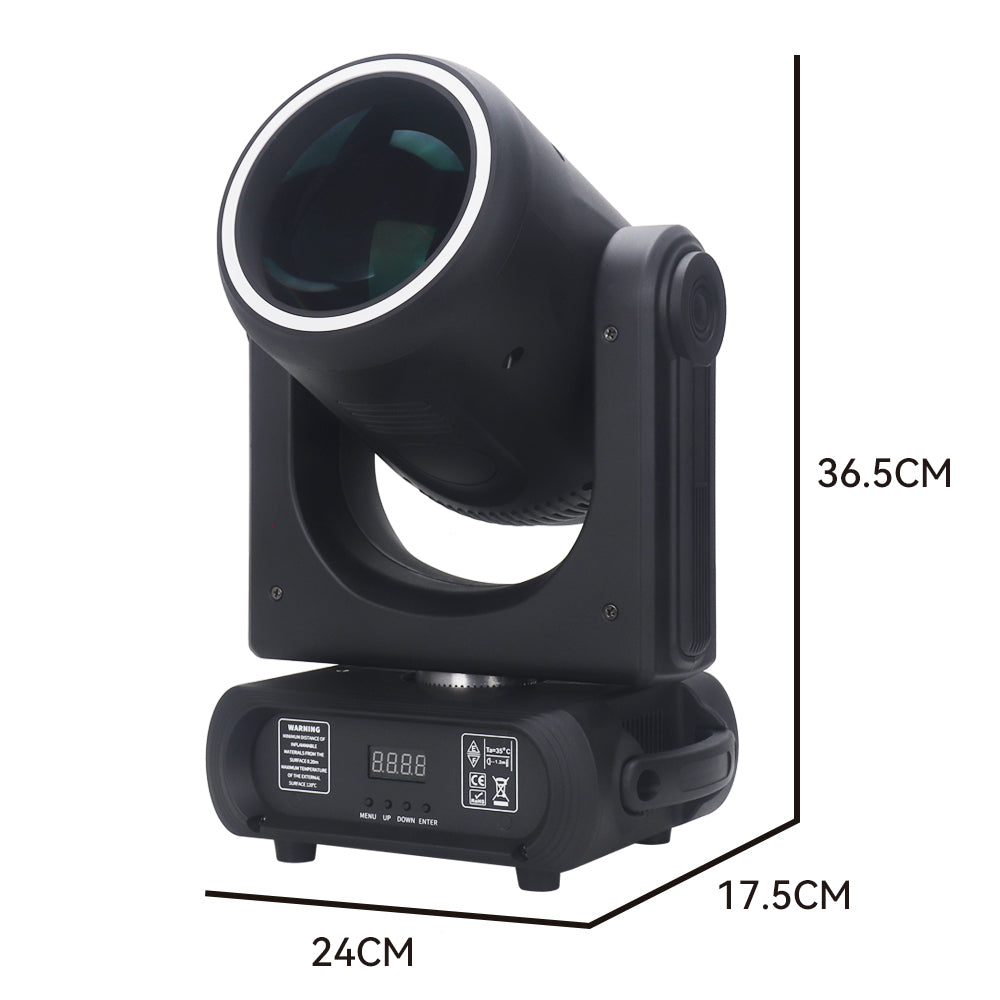

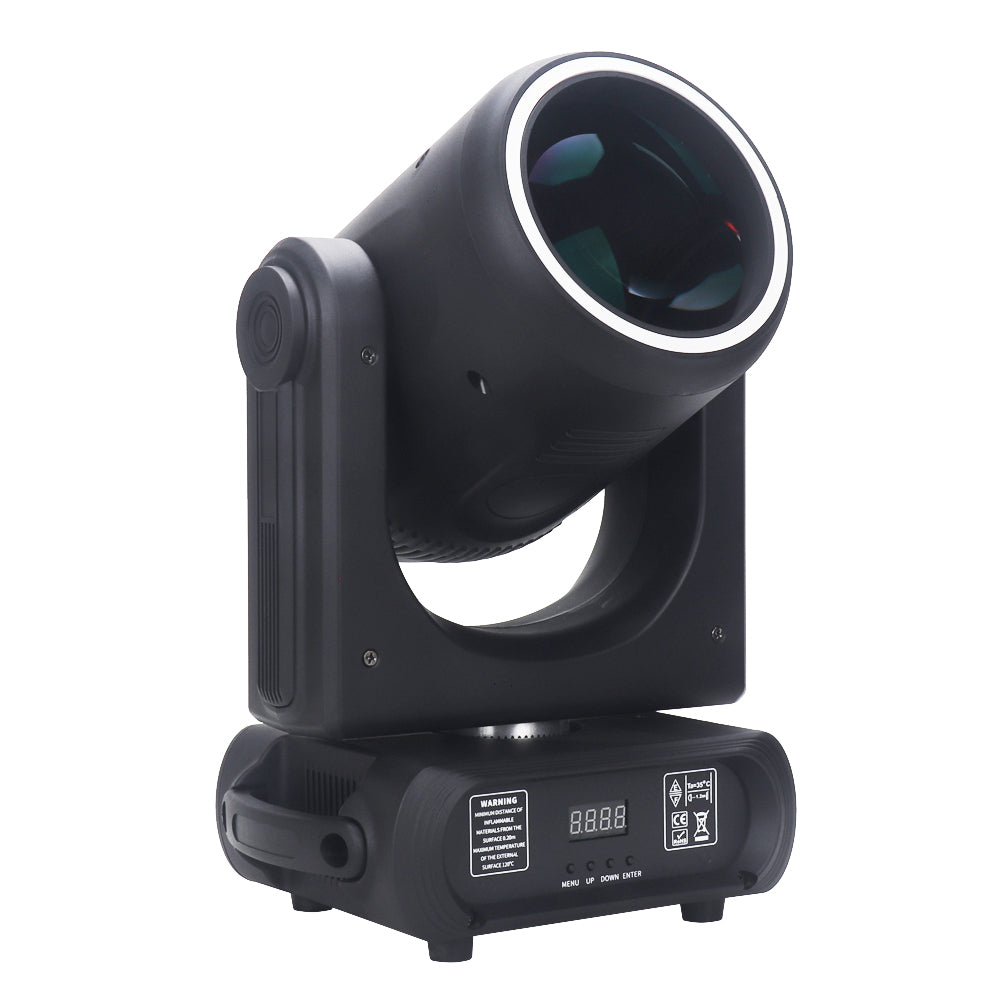

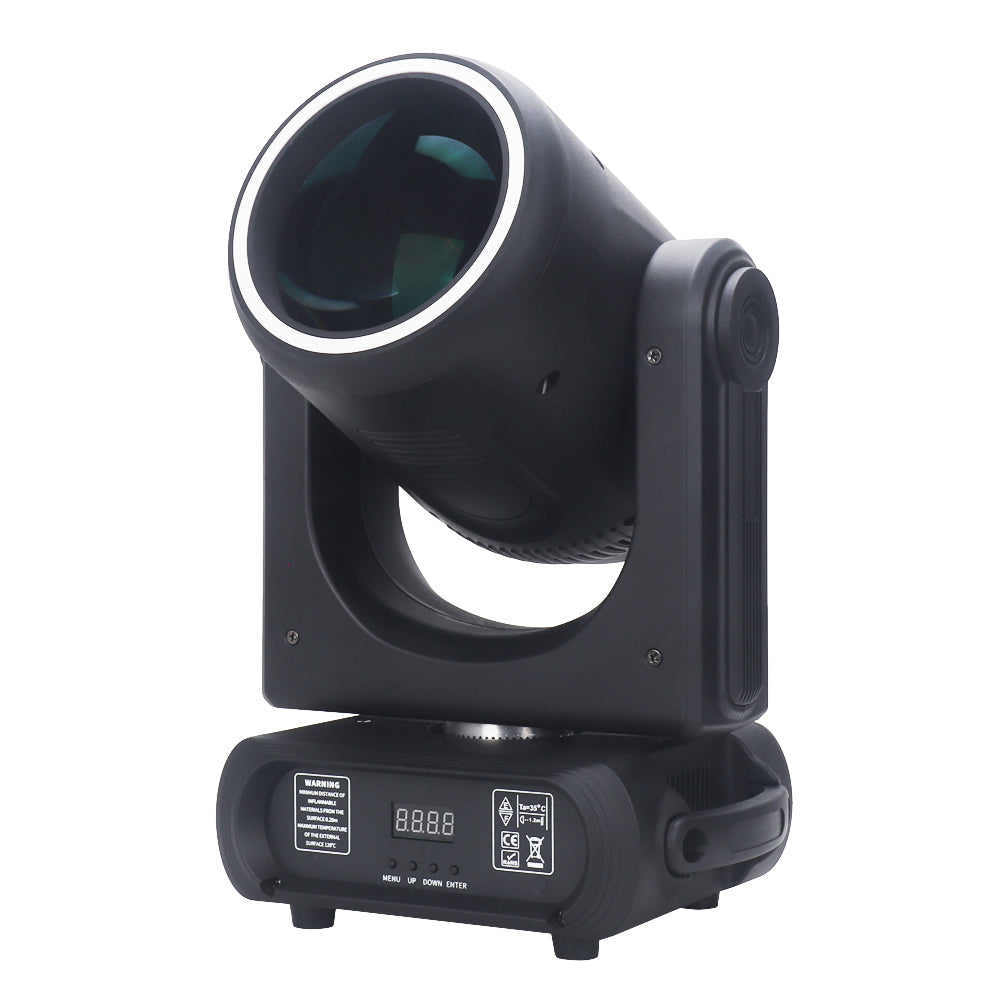

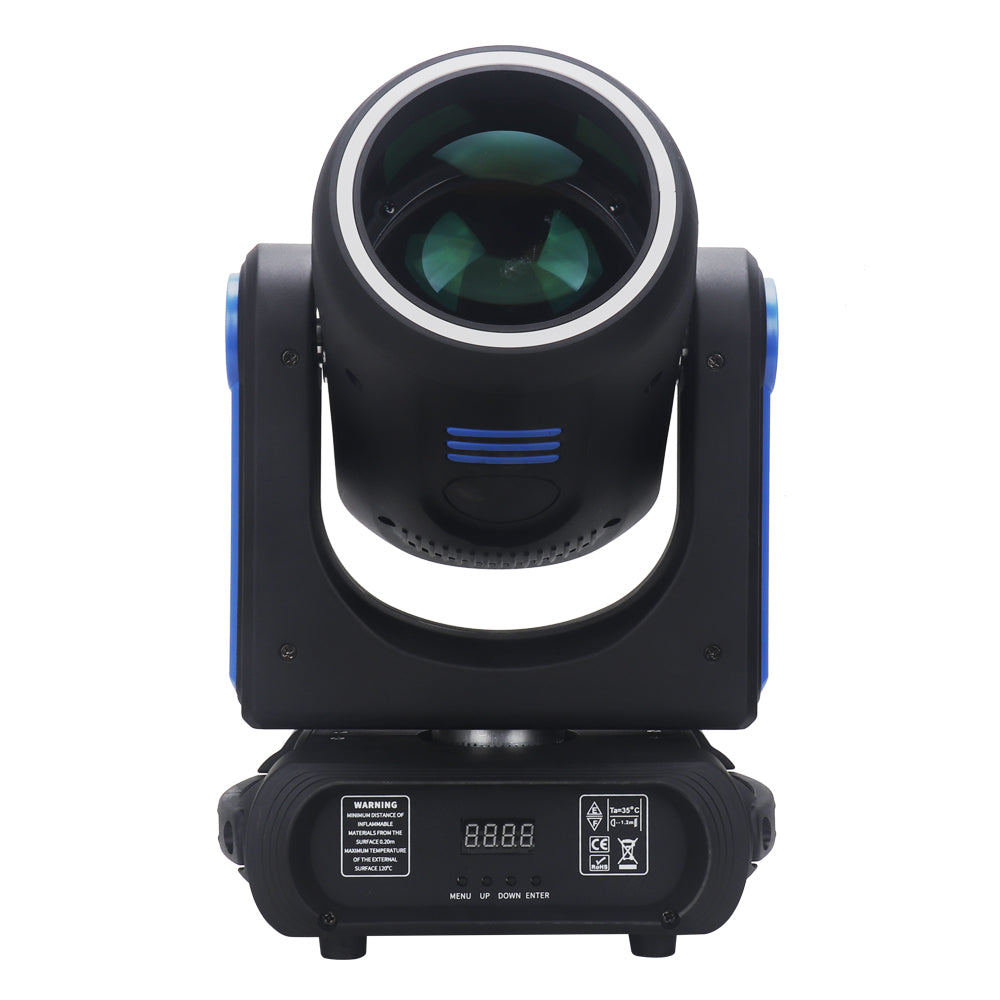

150W LED Focusable Beam Moving Head Light — Precision Beam for Professional Stages

Engineered for demanding stage, club, and event environments, this 150W LED beam moving head delivers a razor-sharp 3° beam with a 24-facet prism for stunning aerial effects. The V0-grade halogen-free flame-retardant housing ensures safety compliance for professional venues.

Key Features

Light Source: 1 × 120W 8500K COB LED — brilliant white output
Beam Angle: 3° ultra-narrow focusable beam
Prism: 24-facet rotating prism for wide beam spread effects
Patterns: 12+1 gobos | Colors: 7+1 color wheel
Pan/Tilt: 540° pan / 270° tilt — full-range movement
DMX Channels: 11CH / 13CH selectable
Drive System: Smooth and silent stepper motor
Cooling: Temperature-controlled silent cooling system
Housing: V0 grade halogen-free flame-retardant body
Power: 150W | AC90–240V, 50/60Hz

Available Colors

Choose from Blue, Orange, or Black housing to match your stage aesthetic.

Ideal For

Concert stages, nightclubs, DJ booths, theaters, corporate events, and architectural lighting installations.

Product Details

200W Beam Light with Head Lamp

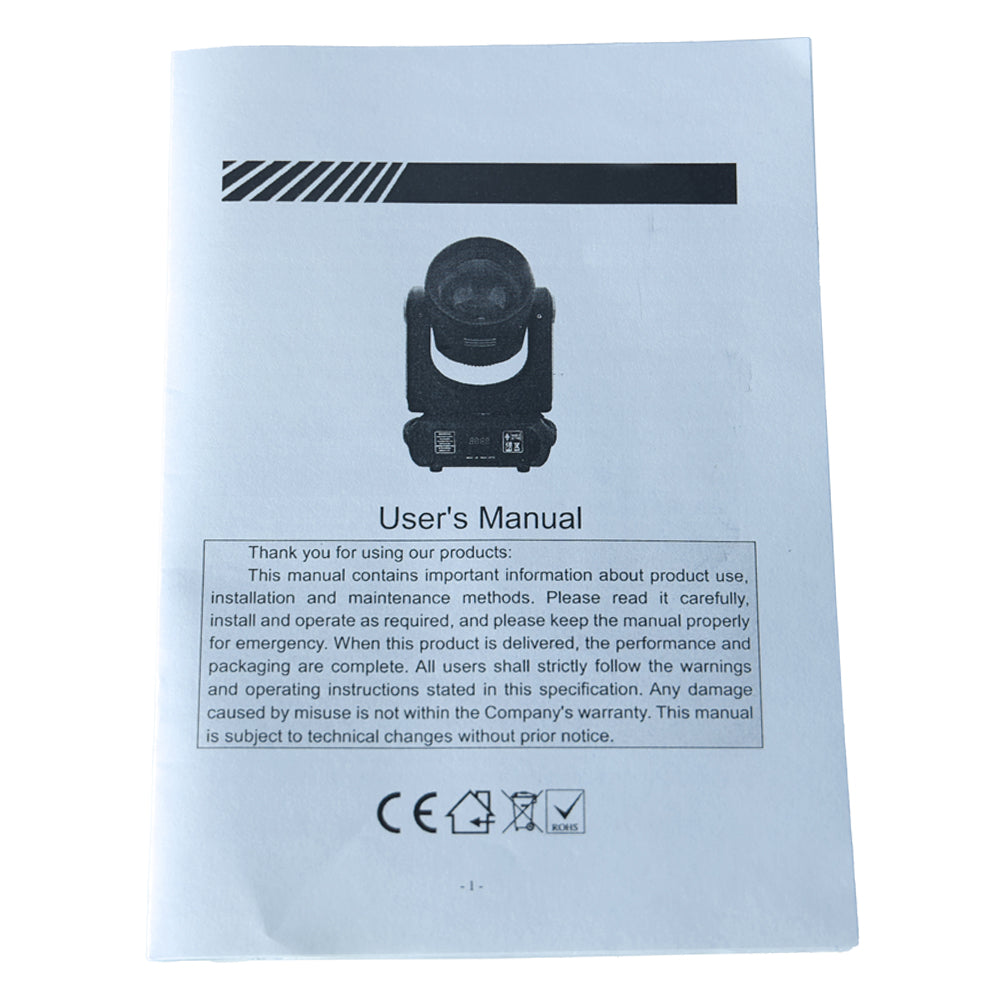

User's Manual

Thank you for using our products. This manual contains important information about product use, installation and maintenance methods. Please read it carefully, install and operate as required, and keep the manual properly for emergency. When this product is delivered, the performance and packaging are complete. All users shall strictly follow the warnings and operating instructions stated in this specification. Any damage caused by misuse is not within the Company's warranty. This manual is subject to technical changes without prior notice.

Product Accessories

Item	Quantity	Status
This manual	1	☑ YES ◻ No

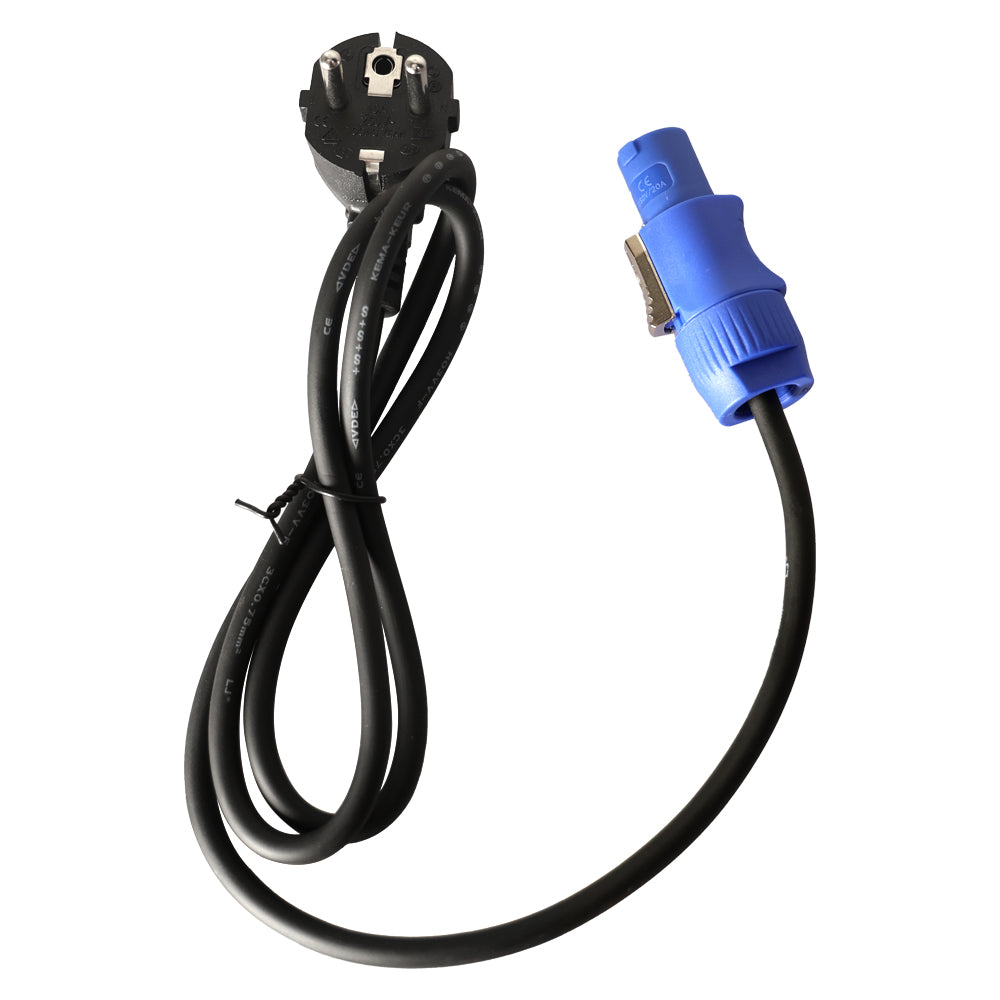

Power cord (as per the order requirement)	1	☑ YES ◻ No
U-shaped frame	1	☑ YES ◻ No

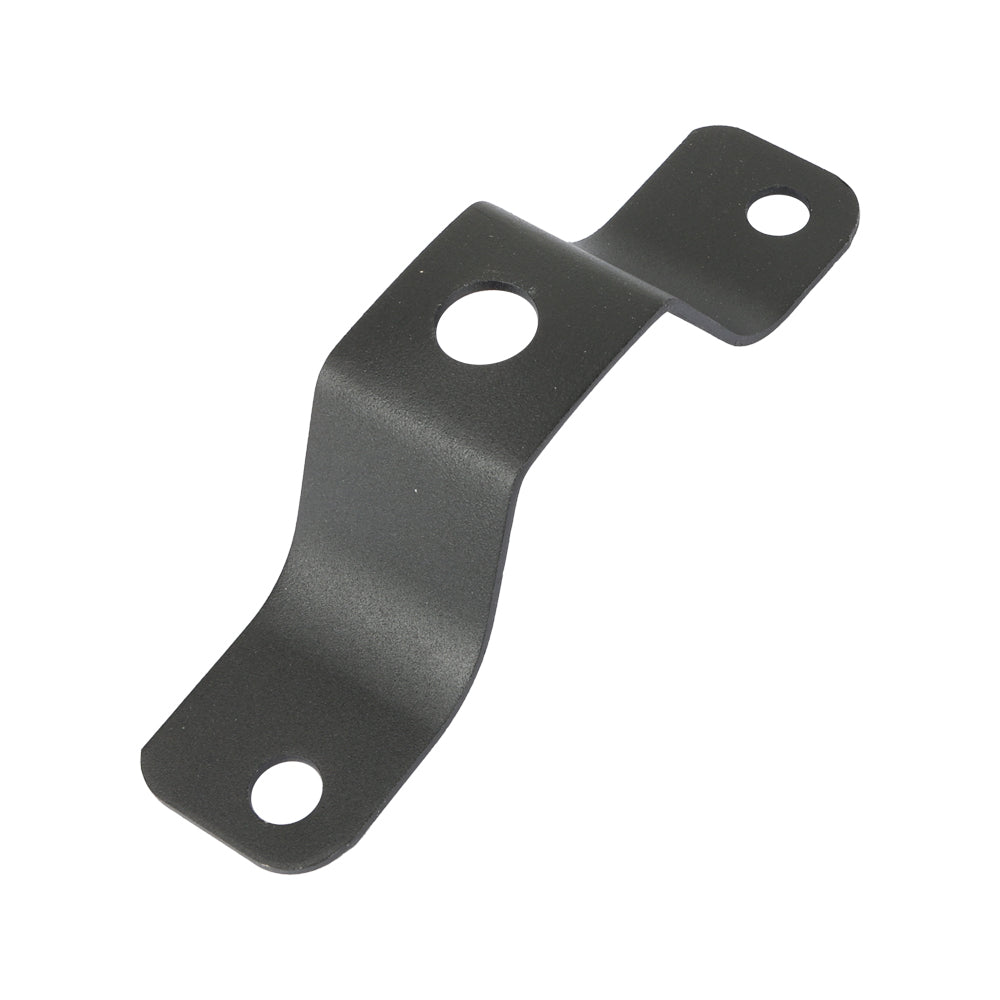

Screw fixed to lamp (for fixing the hanger)	2	☑ YES ◻ No

Product Attributes

Parameter	Value
Operating Voltage	AC100～240V，50～60Hz
Power	250W
LED specifications	200W LED white light
Number	1PCS
Light source life	≥20000h
Aiming	Linear dimming, 0 brightness to 100% adjustable
Strobe	1-25Hz per second, with adjustable strobe speed
Color plate	11 colors + white have a half-color effect
Pattern plate	14 patterns + circular patterns
Prism disc	18 prism, with 360° rotation
Focus	Electronic focusing
Various colours	Have a colorful effect
Atomize	Have atomization effect
X-axis	0～540°
Y-axis	0～270°
Spin velocity	Adjustable speed
Channel	16 international standard channels
Display	LCD display
Control model	☑ DMX ☑ Primary / slave synchronization mode ☑ Auto-control ☑ Sound control
Lamp color	black

Security Warning Information

Before the first use, unpack and check for damage caused by transportation. In case of damage caused by transportation, please do not use this lamp and contact us as soon as possible.
This product is suitable for indoor only and lamps should be kept dry to avoid use in wet, overheated or dusty conditions. Do not let the lamp contact with any liquids such as water.
AC power supply: check whether the local power supply meets the rated voltage requirements of the product.
When installing and positioning the lamps, please do not install the lamps directly on the surface of ordinary combustible substances.
Qualified professionals can carry out the installation, operation and maintenance of lamps.
When the lamp fails, stop using the lamp immediately. Do not try to repair it yourself. Please contact the nearest authorized technical assistance center or manufacturer and always use the same type for replacement.
Do not touch any wire during operation that may cause a dangerous electric shock.
The maximum ambient temperature to ensure the normal and stable operation of the lamps shall not exceed 40°C, and the minimum temperature shall not exceed -20°C. The lamps shall be installed in a well-ventilated place, and ensure that the fan of the lamps rotates normally.
Do not use the damaged power cord of the insulation layer, and do not attach the power cord to other wires. When the lamp is not in use or being cleaned, please take the power cord plug and unplug the power cord. Do not pull it hard or drag the power cord directly.
There is no part inside the lamp that can be repaired by the user. Before operating the lamps, check that all enclosures are installed and the screws are reliably tightened. Do not use the lamp when the housing is open.

Note: Before any installation, repair and cleaning of the lamps, confirm that the power cord is disconnected!

The DMX Controls the Connection of the Signals

DMX512 Three-core XLR connector

If you want to use the DMX controller to control the lamp, you must first set the DMX address code, ranging between 1 and 512, so that the lamp can receive the DMX signal.

Press the MENU button, select the Addr menu choice. Press the ENTER button to enter. Use UP/DOWN to select the DMX512 address code. The factory value is set to Addr. After the address code is set, hold down the ENTER button.

Connect from the output port of the DMX512 console to the DMX input port of the first slave, and from the DMX output port of the first slave to the DMX input port of the second slave, and so on until all slaves are connected.

DMX-512 Connection with Terminal (Loop Connection)

During the installation process, it is recommended to use the DMX terminal (loop connection) if the signal line is laid for a long distance, or in a noisy electrical environment, such as a dance hall. This can avoid digital control signal turbidity due to electrical noise. The DMX terminal is composed of a simple XLR connector with 2 cores and 3 cores connecting a 120Ω resistance. Please insert the terminal into the XLR output port of the last product.

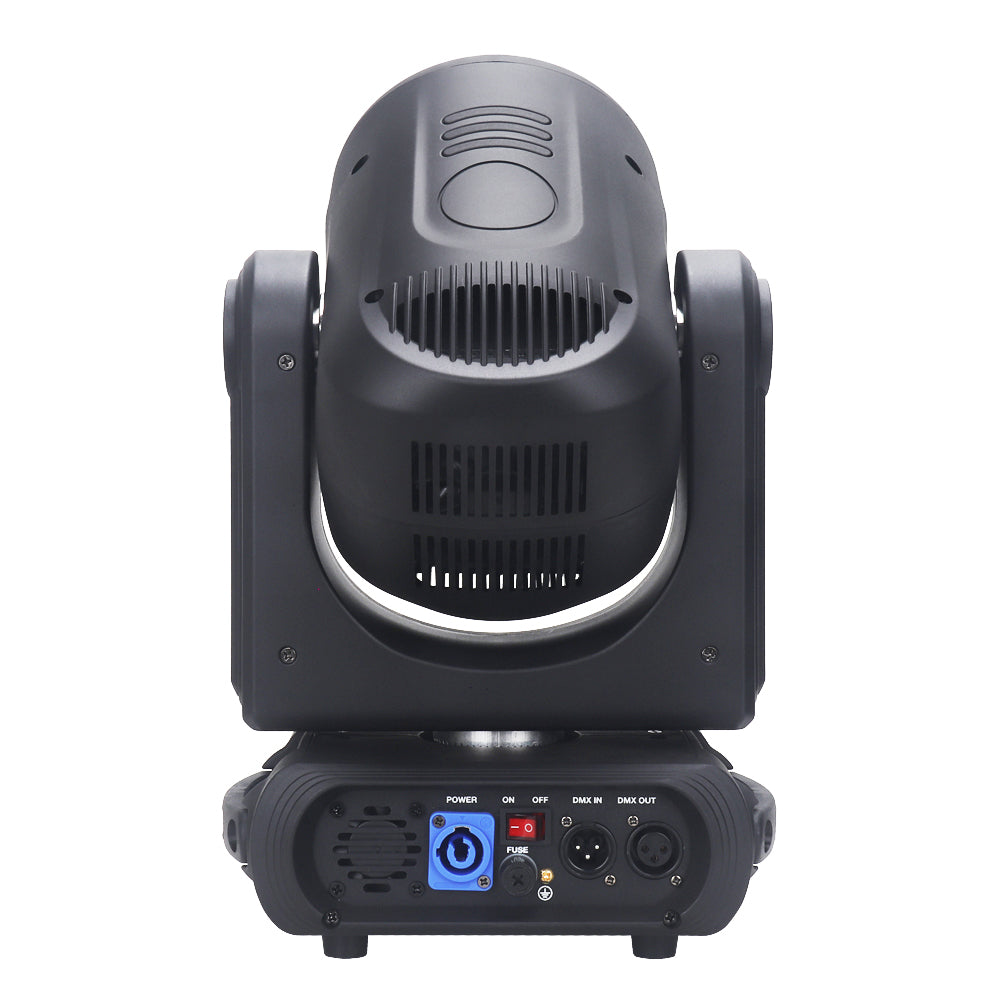

Display Panel

Item	No.	Label	Instruction
Button / Port	1	LCD DISPLAY	LCD display screen
	2	DMX	Signal indicator light
	3	ERR	Fault indicating lamp
	4	Enter	View next menu
	5	Menu	View previous menu
	6	Down	Back to menu
	7	Up	Back to menu
	8	DMX IN	Signal input
	9	DMX OUT	Signal output
	10	POWER	Power in

Menu Function

Menu	Option	Instruction
Main page	Set	Parameter setting
	Manu	Manual setting
	Sys	State monitoring, display
	Adva	Advanced parameter configuration
	Eng	Switch between Chinese and English
	Inv	Forward/reverse display of display screen
	Rst	Device reset
Set	Run mode	DMX, Sound, Auto
	DMX address	001-512
	Channel mode	Standard 16CH
	Sound Regulator	0-100
	Invert Pan	OFF, ON
	Invert Tilt	OFF, ON
	Pan/Tilt Swap	OFF, ON
	No DMX signal	CLEAR, KEEP
	Display time	10S, 20S, 40S, 60S, NO
	Brightness	20%, 40%, 60%, 80%, 100%
	Load Default	OK, Cancel
Manu	Pan	000-255
	Pan fine	000-255
	Tilt	000-255
	Tilt fine	000-255
	Pan/Tilt speed	000-255
	Dimmer	000-255
	Strobe	000-255
	Color	000-255
	Gobo	000-255
	Prism, rotate	000-255
	Rainbow & Frost	000-255
	Focus	000-255
	Auto Run	000-255
	Reset	000-255
	Ring	000-255
	Ring Speed	000-255
Sys	DMX Monitor	Pan, Pan fine, Tilt, Tilt fine, Pan/Tilt speed, Dimmer, Strobe, Color, Gobo, Prism rotate, Rainbow & Frost, Focus, Auto Run, Reset, Ring, Ring Speed
	System Errors	Error logging
	LED temp	Temperature display
	DP	Version number
	MT	Version number
Adva	Enter password	Up, Up, Up, Down, Down, Down
	Sensor monitor	Pan Hall State, Tilt Hall State, Color Hall State, Gobo Hall State, Prism Hall State, Rainbow Hall State, Focus Hall State
	Reset calibration	Pan calibration (-128~~127), Tilt calibration (-128~~127), Color calibration (-128~~127), Gobo calibration (-128~~127), Prism calibration (-128~~127), Rainbow calibration (-128~~127), Frost calibration (-128~~127), Focus calibration (-128~~127)
	LED Maximum power	On/off, 000-255 (keep factory settings)
	Top LED Temp	50-80 (keep factory settings)
	Rainbow Trip	000-255 (keep factory settings)
Rst	Reset all motors
Int	Inversion display
Eng	Change language

DMX Channel Control Content

[DMX 1] 16CH Mode

Channel	Function	Value Range	Functional Description
1	X-axis	000-255	Horizontal position, 0-540°
2	X-axis fine-tuning	000-255	Horizontal position fine-tuning
3	Y-axis	000-255	Vertical position, 0-270°
4	Y-axis fine-tuning	000-255	Vertical position fine-tuning
5	X/Y speed	000-255	Horizontal/vertical movement speed, fast to slow
6	Dimming	000-255	LED linear total dimming, 0-100% brightness
7	Strobe	000-015	Strobe closed
		016-255	Strobe, speed from slow to fast
8	Color	000-007	White (color)
		008-095	1-11 color choices
		096-175	Half-color effect selection
		176-215	Color plate turning, speed fast to slow
		216-255	Color disk reversal, speed slow to fast
9	Gobo	000-005	Circular pattern
		006-089	Gobo 1-14 selection
		090-179	Gobo jitter selection, slow to fast
		180-217	Pattern turning, speed fast to slow
		218-255	Pattern reversal, speed fast to slow
10	Prism	000-099	Prism closed
		100-127	Prism opening (18-prism)
		128-255	Prism 360° rotation, slow to fast
11	Colorful / Atomized	000-004	Colorful / Fog off
		005-126	Atomization open
		127-255	Colorful open
12	Focus	000-255	Focus
13	Auto / Sound	000-050	Other channels have a role
		051-100	Fast self-walking
		101-200	Slow self-propelled
		201-255	Sound mode
14	Reset	000-249	No function
		250-255	Automatic reset after waiting for 3 seconds
15	Light belt switch	000-004	Turn off the light belt
		005-014	Red
		015-024	Green
		025-034	Blue
		035-044	Yellow
		045-054	Purple
		055-064	Cyan
		065-074	White
		075-248	Effect mode selection
		249-255	Random effect
16	Light band speed	000-255	Speed from fast to slow (effective when CH15 is 075-248)
